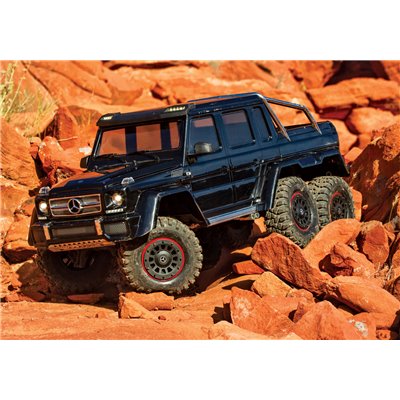

TRX-6 Mercedes-Benz G63 AMG 6X6 TQi 2.4G RTR Svart

Traxxas TRX-6 Mercedes-Benz G63 AMG 6x6 - BLACK

The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz G 63 AMG 6x6 with an officially licensed detailed scale replica built on the new TRX-6™ platform. Six drive wheels, three T-Lock™ remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.

TRX-6 Mercedes-Benz G63 AMG 6x6 Features:

• Officially Licensed Mercedes-Benz G 63 AMG 6x6 Body
• Exceptional Body Details
• Factory-Equipped LED-Lighting
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Portal Axles for Maximum Ground Clearance
• High/Low Two-Speed Transmission with Remote Shifting
• T-Lock™ Remote Locking Differentials

Specifications (#TRX88096-4-BLK):

• Length: 651 mm
• Front Track: 249 mm
• Rear Track: 249 mm
• Ground Clearance: 80 mm
• Weight: 3.99 kg
• Height: 274 mm
• Wheelbase (to intermediate axle): 324 mm
• Wheelbase (to rear axle): 454 mm
• Approach Angle: 60°
• Departure Angle: 55°
• Breakover Angle: 58.93°
• Front Shock Length: 90 mm
• Rear Shock Length: 90 mm
• Battery Tray: L158.75 x W47 x H23/26 mm
• Front Wheels: 2.2 x 1.02” (56 x 26 mm)
• Rear Wheels: 2.2 x 1.02” (56 x 26 mm)
• Front Tires: 4.64 x 1.89” (118 x 48 mm)
• Rear Tires: 4.64 x 1.89” (118 x 48 mm)
• Hex Size: 12 mm
• Speed Control: XL-5 HV
• Motor (electric): Titan® 21T Reverse Rotation
• Transmission: 2-speed High/Low, Remote Shifting
• Gear Pitch: 32P
• Differential Type: 4 Gear, Remote Locking
• Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft-Driven 6WD
• Steering: Chassis Mounted Servo
• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
• Receiver: 6533
• Skill Level: 1

Motor Specs:

• Type: High-torque brushed motor
• Size: 550
• Weight: 390g (13.76oz)
• Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
• Turns: 21T reverse rotation
• Voltage: 16.8V

ESC Specs:

• Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
• Case Size: 1.23” W x 2.18” D x 1.04” H
• Weight: 2.6oz (74g)
• Motor Limit: 21-turns (550 size)
• On Resistance Forward: 0.004 Ohms
• On Resistance Reverse: 0.004 Ohms
• Peak Current - Forward: 100A
• Peak Current - Reverse: 100A
• Braking Current: 60A
• Continuous Current: 18A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5”
• Input Harness Wire: 26 Gauge / 14.5”
• Transistor Type: MOSFET
• PWM Frequency: 1700Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal Shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV
• Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

* Patented

What’s In The Box:

• TRX-6, Ready-To-Drive® model
• XL-5 HV waterproof electronic speed control
• Titan® 21T reverse rotation motor
• TQi™ 2.4GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries: TRX-6 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
• Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971)
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
