T16SZ Radio - R7008SB - FASSTest FASST T/S-FHSS

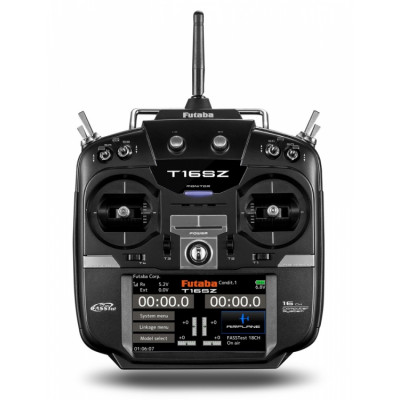

Futaba T16SZ

If you want a radio system that can handle any challenge, step up to the 16SZ. It’s compatible with all of the popular protocols: FASSTest, FASST, S-FHSS and T-FHSS. It has a large 4.3" LCD touch screen. Programming is easy and intuitive, for airplanes, helis, gliders and drones. All this plus a high-voltage S.BUS2 receiver, the convenience of 30-model memory and much, much more.


The 16SZ offers quick access to all four protocols: FASST, FASSTest, S-FHSS and T-FHSS.


The high-voltage R7008SB receiver offers you a number of servo and channel choices. Use up to 8 channels with standard PWM outputs, or up to 18 channels (16 proportional + 2 switched) with S.Bus and S.Bus2 outputs.


Features:

• Compatible with:

  • FASSTest, FASST, S-FHSS and T-FHSS protocols
  • Futaba HV (High-Voltage) receivers
  • All Futaba telemetry sensors
• 16 proportional channels, 2 switched
• Free online software upgrades
• 4.3" LCD touch screen
• 30-model memory
• 15-character user and model naming
• Sub trims (240 steps)
• Servo reversing
• Trim settings (adjustable step, rate & mode)
• Servo speed adjustment
• AFR/DR
• AFR curve mode (3)
• AFR curve point (17 points)
• Idle down
• Logic switch
• Full flight condition
• 10 programmable mixes
• Throttle cut
• S.BUS servo programming editor
• High-voltage R7008SB receiver
• Swash and throttle mixing
• V-tail mixing
• End point adjustment
• Adjustable servo speed
• 8 flight conditions
• 3-axis gyro support
• Micro memory card slot
• Voice message/audio earphone jack
• Up/down integral timer (2)
• Throttle timer
• Lap timer/memory
• Battery fail safe
• Stick calibration
• Eight toggle switches
• Two assignable front dials
• Four assignable trim levers
• Two assignable side levers
• Trainer S.BUS port
• Vibration alert
• 180° antenna rotation and 90° angle adjustment
• Multi language (9 languages)

Airplane Features:

• 13 wing types
• 3 tail types
• 2 rudder types
• Flap setting
• Aileron differential
• Aileron to camber flap mix
• Aileron to brake flap mix
• Aileron to rudder mix
• Airbrake to elevator mix
• Rudder to aileron mix
• Rudder to elevator mix
• Camber mix
• Elevator to camber mix
• Snap roll
• Airbrake mix
• V-tail
• Ailevator
• Winglet
• Motor mix
• Multi-engine
• Gyro sensor

Helicopter Features:

• 8 swash types
• Pitch/throttle curve
• Pitch/throttle curve mode (3)
• 17 point pitch/throttle curve
• Acceleration
• Throttle hold
• Swash mixing
• Throttle mixing
• Pitch to needle mixing
• Pitch to rudder mixing
• Gyro sensor (3)
• Governor
• Condition hold
• Hovering pitch
• Hovering throttle
• Swash AFR
• Swash setting
• Swash ring
• Throttle limiter

Glider Features:

• 13 wing types
• 3 tail types
• 2 rudder types
• Flap setting
• Aileron differential
• Aileron to camber flap mix
• Aileron to brake flap mix
• Aileron to rudder mix
• Rudder to aileron mix
• Airbrake to elevator mix
• Camber mix
• Elevator to camber mix
• Camber flap to elevator mix
• Butterfly mixing
• Butterfly to elevator
• Trim mix 1
• Trim mix 2
• V-tail
• Ailevator
• Winglet
• Motor mix

Multicopter Features:

• Gyro

Telemetry Functions:

• Receiver battery
• Temperature
• RPM (magnetic and optic)
• Altitude
• GPS
• Voltage
• Current
• Servo
• Voice (English, German, Japanese, French)
• Data logging

Included in box:

• T16SZ transmitter
• R7008SB receiver
• 6.0V NiMH battery
• 230VAC wall charger
• Receiver switch unit
• Neck-Strap
