FA-120R3 4-takts 3-cyl Stjärnmotor Metanol 1.20ci | 20cc*

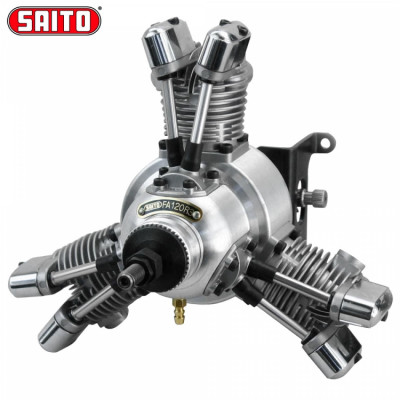

Saito FA-120R3 Radial Nitro/Glow Engine

The Saito™ brand continues to expand their radial engine line with the addition of the FA-120 3-cylinder radial. Ideal for 60- to 90-size models, the FA-120R3 is an upgrade from the FA-090R3 engine, featuring 33% larger displacement and more power—all at a lighter weight for a higher power-to-weight ratio. The FA-120R3 also comes with a 3-piece flex exhaust system, making for an all-inclusive package.

And, like all Saito engines, this powerhouse is engineered with that same Saito quality and reliability you have come to know and trust.

Key Features:

• Optimum for small-size scaled airplane
• Low vibration (assured by constant-interval explosion)
• Real sound of the exhaust
• The engine is designed to equalize fuel mixture and minimize misfire due to insufficient distributing at idling by means of special port type intake manifold originally developed by SAITO
• Cylinder head: Improved semi-spherical combustion chamber assures better combustion efficiency and volumetric efficiency
• Cylinder: The aluminum cylinder is directly hard-chrome plated on its inner surface without installing liners to reduce weight and increase durability. The monolithic structure of cylinder head and cylinder prevents distortion and improves cooling efficiency.
• Piston: The piston is made of high silicon content aluminum and attached with a compression ring to heighten engine performance
• Crankshaft: Has a forged solid construction made of chrome molybdenum steel, and supported by two ball bearings
• Camshaft: Features high cam providing longer maximum lift time
• Carburetor: High-performance of slow throttling type
• Propeller nut: designed to have double nuts preventing loosening and fall-off for the safety.
• More power for 60- to 90-size planes
• Proven performance and reliability
• Fits great into round cowl planes

Specs:

• Displacement: 19.18 cc
• Bore: 22.4 mm
• Stroke: 16.2 mm
• Crankshaft Threads: M7x1 mm
• Cylinder Type: AAC
• Cylinders: Radial
• Muffler Type: Three flex tube exhaust hoses (included)
• Prop Range: 13x8-14x6
• Rec Prop: APC 14x5 @ 9.400 rpm
• RPM Range: 1.800 - 10.000
• Max ground rpm: 8.800-9.500
• Recommended Fuel: Glow fuel with 5-20% nitro and synthetic oil
• Total Weight: 890 g w/ mufflers
