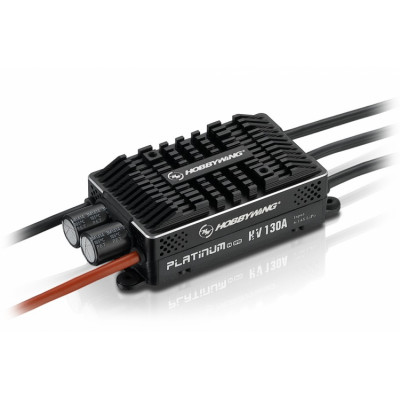

Borstlöst Fartreglage Platinum Pro 130A HV OPTO 6-14S V4*

Borstlöst Fartreglage Platinum Pro 130A HV OPTO 6-14S V4 - Hobbywing 30209201

Platinum Pro 130A HV OPTO 6-14S V4 är ett borstlöst fartreglage från välkända Hobbywing. Avsedd för flygplan, drönare och helikoptrar.

Original Artikelnummer: Hobbywing 30209201

Specifikationer

Produkt: Borstlös fartreglage

Avsedd för: Avsedd för flygplan, drönare och helikoptrar.

Mer information från Hobbywing

Hobbywing Platinum HV 130A Opto V4 ESC

• High performance microprocessor for excellent motor speed-governing and super soft start-up
• Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control
• DEO (Driving Efficiency Optimization) Technology adopted greatly improves throttle response & driving efficiency, reduces ESC temperature
• Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor)
• New governor program with adjustable governor parameter P/I brings excellent speed-governing effect, guarantees the stability of the propeller’s revs when the load changes dramatically
• Data logging records the standardized RPM, minimum voltage and maximum temperature of the flight
• "Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations
• Independent output port for RPM (that is: motor speed) signals
• Separate programming port for ESC programming or parameter setting
• WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (iOS or Android)
• Online data checking, ESC programming, firmware upgrade (Multifunction LCD program box or WIFI Express is needed) supported
• Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, and throttle signal loss protection

Type:

• Brushed/Brushless: Brushless
• High Voltage/Regular: High Voltage

Specifications:

• Continuos/Peak Current: 130A/160A
• Input Voltage: 6-14S LiPo
• BEC Output: No

Wires & Connectors:

• Input Wires: 12AWG/150mm
• Output Wires: 12AWG/100mm
• Input Connectors: No
• Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:

• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Separate Program Port
• Firmware Upgrade: Supported

Size & Weight:

• Size: 101 x 45.5 x 27 mm
• Weight: 154 g

Rec. Applications:

• 550-600 Class Heli (Main Blade: 550-690 mm)
• .90-.140 Class Fixed-wing Airplane
• 2m FAIF3A & 3D
• EDF (with Diameter ≦105mm)
