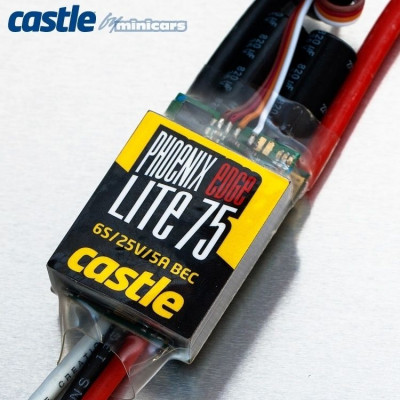

Borstlöst Fartreglage PHOENIX EDGE LITE 75 - 25V 75A ESC*

Borstlöst Fartreglage PHOENIX EDGE LITE 75 - 25V 75A ESC - Castle Creation 010-0112-00

PHOENIX EDGE LITE 75 - 25V 75A ESC är ett borstlöst fartreglage från välkända Castle Creation. Avsedd för flygplan, drönare och helikoptrar.

Original Artikelnummer: Castle Creation 010-0112-00

Specifikationer

Produkt: Borstlös fartreglage

Avsedd för: Avsedd för flygplan, drönare och helikoptrar.

Mer information från Castle Creation

Lose the weight, gain the Edge.

Put your power system on a diet with the Phoenix Edge Lite series of ESCs. With the same amazing features and functionality of the Edge series, the Edge Lite offers a slight weight reduction for applications that are tight for space or weight. Simply put, the same brawn with less body - Phoenix Edge Lite.

With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.

The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter.

Technical Specs:

• Input voltage: MIN: 2S LiPo MAX: 8S LiPo
• Max continuous amperage at full throttle: 75 amps*
• BEC voltage (voltage regulator for powering radio and servos): User selectable choice from 5 to 8.4 volt output
• BEC output amperage: 5 amp peak**

Size and Weight:

• Width: 30.5 mm
• Length: 66 mm
• Height: 21.4 mm
• Weight w/wires: 81 g
• Weight w/o wires: 41 g

Miscellaneous:

• Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software.
• Castle Field Link Programming Card (sold separately) compatible for select functions.
• Connectors: Battery and motor connectors sold separately
• Tools needed for installation: Soldering iron and solder to attach bullets to motor wires and battery connector to power wires.

*RC HOBBY APPLICATION RATING: 75 amps with appropriate cooling. Phoenix Edge Lite controllers are designed without a heat-sink for applications with extreme air-flow, such as EDF planes, or applications with average current requirements much less than peak current requirements. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.

**Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Your setup may vary. Always confirm servo current draw before the first flight of the model.
