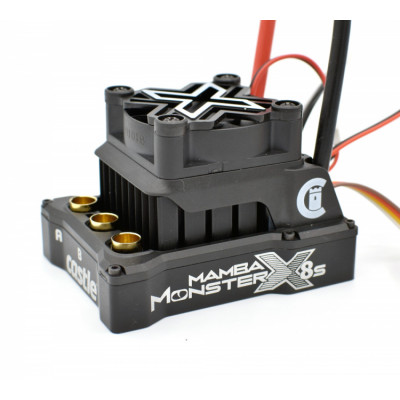

Borstlöst Fartreglage Mamba Monster X 8S 33.6V

Borstlöst Fartreglage Mamba Monster X 8S 33.6V - Castle Creation 010-165-00

Mamba Monster X 8S 33.6V är ett borstlöst fartreglage från välkända Castle Creation. Avsedd för bilar.

Original Artikelnummer: Castle Creation 010-165-00

Specifikationer

Produkt: Borstlös fartreglage

Avsedd för: Avsedd för bilar.

Mer information från Castle Creation

Castle Mamba Monster-X-8S, 33.6V ESC

MORE POWER - COOLER TEMPS - LONGER RUNS
Take your 1:6th scale build or upgrade to the next level with Castle’s legendary brushless power. With the introduction of the MAMBA MONSTER X 8S any R/C vehicle weighing up to 25lbs, and running up to 8S LiPo, is fair game.

• Waterproof : Yes
• Telemetry Capable : Yes
• Data Logging : Yes
• Auxiliary Wire : Yes
• Minimum Input Voltage : 2S
• Maximum Input Voltage : 8S
• Sensored Capable : Yes
• Recon G6 Certified ESC : No
• ROAR Certified ESC : No
• CRYO-DRIVE : Yes

Specs:

• Applications: 1:6th Scale vehicles weighing up to 11kg
• Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo 33.6V
• Running Modes: Sensored, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes, waterproof
• Cooling Fan: Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
• Size (LxWxH): 69.5x54.1x47mm
• Weight (with wires): 163gr

Connectors type:

• 6.5mm female bullets for motor connection
• Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.

Operating environment:

• Waterproof design for all weather conditions

Programmability:

• Fully programmable Castle feature set using Castle Link USB adapter(coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).

Telemetry Link Capable:

• Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.

Product Use Statements:

• Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
• Surge ratings should never be used to determine a pack’s suitability for a brushless application.
• We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
• Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty.
• Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
• The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
