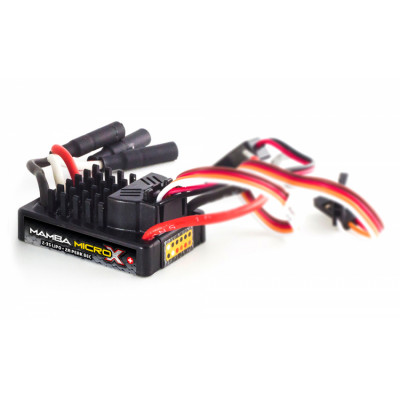

Borstlöst Fartreglage MAMBA Micro X 126V ESC 2A PEAK BEC Crawling

Borstlöst Fartreglage MAMBA Micro X 126V ESC 2A PEAK BEC Crawling - Castle Creation 010-0162-00

MAMBA Micro X 126V ESC 2A PEAK BEC Crawling är ett borstlöst fartreglage från välkända Castle Creation. Avsedd för bilar.

Original Artikelnummer: Castle Creation 010-0162-00

Specifikationer

Produkt: Borstlös fartreglage

Avsedd för: Avsedd för bilar.

Mer information från Castle Creation

Castle Mamba Micro-X ESC Crawler Edition

Putting the X in Extreme!
The Mamba Micro X Crawler edition ESC is our latest offering for the crawling crowd. This ESC is ideal for the weight conscious builder or where space is limited, used in low speed crawling or trail running in vehicles weighing up to 8lbs on 2s or 3s; it can also be used in slightly more aggressive setups like rock racing and extended hill climbing on vehicles up to 4lbs. Recommended motors include Castle's "Slate" crawler motors (combos available) and Holmes Hobbies Puller Pro 540 "Stubby" (≤ 2700kv)

• Waterproof : Yes
• Telemetry Capable : Yes
• Data Logging : No
• Auxiliary Wire : Yes
• Minimum Input Voltage : 2S
• Maximum Input Voltage : 3S
• Sensored Capable : Yes

If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.

Note: Use of an external BEC is required if running a high power or digital servo.

This SPECIAL EDITION of the Mamba Micro X includes motor solder posts with 16 AWG wire and 4mm female bullets for the motor connection; it also includes the matching 4mm male bullets to attach to your motor.

The Auxiliary Advantage.
Mamba Micro X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!

Telemetry Capability
The Mamba Micro X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Castle Link Compatible
With the optional Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Adjustable settings include:

• Throttle curve
• Braking curve
• Drag brake
• Auto LiPo cutoff
• Punch Control
• Reverse Type
• Motor Type

Additional Castle Link benefits include:

• Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
• Intuitive Demo Mode capability.
• Ability to save setup profiles for later use.

Package Includes:

• Crawler Edition Mamba Micro X w/solder posts
• Castle Sensor Harness adapter
• Driver's Ed and Quick Start Guides
• Castle decal sheet

Specifications:

• Input Voltage Range: MIN: 2S LiPo - MAX: 3S LiPo (12.6V)
• BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V. Use of external BEC is recommended if using a high torque/speed digital servo; the CC BEC or CC BEC 2.0 Waterproof are recommended
• Operating Environment: Waterproof* design allows for use in nearly any environment.
• Brake: Proportional
• Reversible: Yes, but can be disabled for racing
• On/Off Switch: Yes, waterproof*
• Cooling Fan: No
• Length: 41mm
• Width: 19mm
• Height: 28mm
• Weight (without wires): 34g
• Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes Castle sensor harness.
• Items Needed for Operation: Battery Connector required, Castle 4mm polarized Connectors, T-Plugs, or Traxxas Power Connect are recommended.

Product Use Statements:

• Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.
• Recommended battery capacity is at least 1500mAh and 25C. Castle recommends running the highest mAh that will fit in your vehicle and the highest C rating you can afford.
• The Crawler Edition Mamba Micro X has solder posts for the motor connections; includes 13 gauge wire with 4mm female bullets that connect directly to the included 1406-1900kv motors and the battery input wires are bare. You must solder the connector to the wires on the ESC. See Items Needed for Operation for recommendations.
• Application Guidelines: Low speed crawling or trail running in vehicles weighing up to 3.6kg. If you're looking for a more aggressive setup, like rock racing and extended hill climbing it is recommend to run the Mamba X ESC with the same motor.
• Recommended Motors: Castle's "Slate" crawler motors (combos available)
• Max. Recommended Vehicle Weight: 3.6kg when used for low speed/moderate driving style; 1.8kg for more aggressive driving styles.
• Programmability: Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Telemetry Link Capable: Yes
• Tech Notes: *Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
