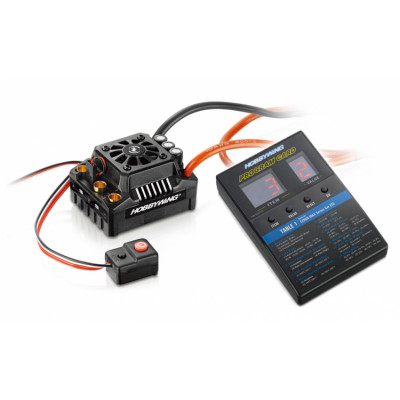

Borstlöst Fartreglage EzRun MAX8 V3 150A 1:8 XT90-kontakt

Borstlöst Fartreglage EzRun MAX8 V3 150A 1:8 XT90-kontakt - Hobbywing 30103200

EzRun MAX8 V3 150A 1:8 XT90-kontakt är ett borstlöst fartreglage från välkända Hobbywing. Avsedd för bilar.

Original Artikelnummer: Hobbywing 30103200

Specifikationer

Produkt: Borstlös fartreglage

Avsedd för: Avsedd för bilar.

Mer information från Hobbywing

Hobbywing EzRun MAX8 V3 150A Brushless Sensorless 1/8 ESC with XT90 Plugs

High Reliability & Durability
Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.

Great Flexibility & Versatility
The ESC has strong outbreak and stable output, so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flips, high speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up.

Applicable to All Weather Conditions
Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.

Super Built-in BEC
The worlds first 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output voltage (6V/7.4V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers.

Advanced and Secure Electronic Switch
The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.

Almost Maintenance Free
The whole ESC except the cooling fan is basically maintenance free. Besides, the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.

Specs:

• Type: 1/8 Brushless, Sensored 1/8 Truck ESC
• Waterproof: Yes
• Cont./Peak Current: 150A/950A
• Input Voltage: 3-6S LiPo
• BEC Switch Mode: 6V/7.4V, 6A
• Input Wires: 10AWG-200mm
• Output Wires: 10AWG-200mm
• Input Connectors: XT90 (dual)
• Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
• Fan Size: 30x30x10mm
• Fan Voltage Range: 5-7.4V
• Fan Powered by BEC
• Size: 59.8x48.0x36.8mm
• Weight: 174g

ESC Programing via:

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• OTA Programmer: Supported
• Program Port: FAN/Program Port
• Firmware Upgrade: Supported

Applications:

• Motors: Sensorless Brushless Motors (or Sensored Motors in Sensorless mode)
• Vehicles: 1/8 Touring Car/Buggy/Truck
