Borstlöst Fartreglage EzRun MAX10SCT 120A 1:10

Borstlöst Fartreglage EzRun MAX10SCT 120A 1:10 - Hobbywing 30102601

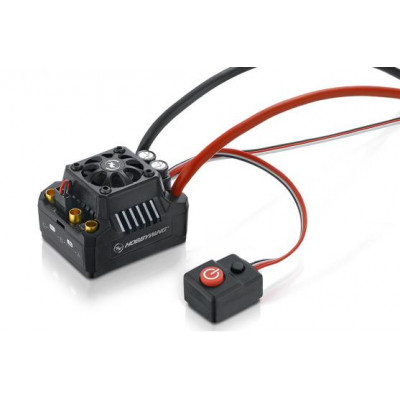

EzRun MAX10SCT 120A 1:10 är ett borstlöst fartreglage från välkända Hobbywing. Avsedd för bilar.

Original Artikelnummer: Hobbywing 30102601

Specifikationer

Produkt: Borstlös fartreglage

Avsedd för: Avsedd för bilar.

Mer information från Hobbywing

Hobbywing MAX10-SCT 120A Brushless ESC

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.

Advanced and Secure Electronic Switch
The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-prood and shock-resistant design.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Innovative Filter Capacitor Thermal Protection
The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect capacitors from exploding and causing irreversible damage to the ESC due to overload.

Regular Firmware Updates Free of Charge
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.

Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.


Specifications:

• Size: 49 x 39,5 x 34,7mm
• Weight: 105g
• Brushless: Yes
• Sensored: No
• Waterproof: Yes
• Cont. Current: 120A
• Peak Current: 830A
• Input: 2-4S Li-Po / 6-12 cells NiMH
• Bec Output: Swith Mode 6/7,4V 4A
• Input Wires: Red/Black 12AWG 200mm
• Output Wires: Black 12AWG 200mm x3
• Input Connectors: No
• Output Connectors: 4mm Bullet (Female)
• Voltage Range Fan: 5-7,4V

Applications:

• Motors: SL BL Motors/SD BL Motors (only in SL mode)
• Vehicles: 1/10^thSCTs/Truck/Monster Truck
• KV Rating: 2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors)
