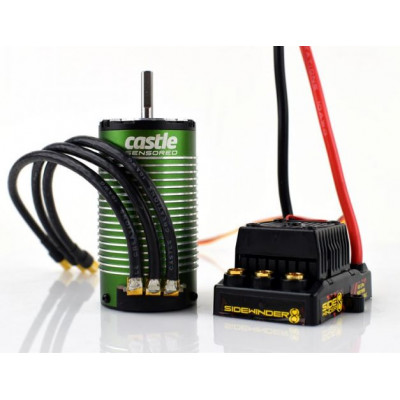

Borstlös Motor Sidewinder 8th ESC och Castle sensor 1515-2200KV Combo

Borstlös Motor Sidewinder 8th ESC och Castle sensor 1515-2200KV Combo - Castle Creation 010-0139-01

Sidewinder 8th ESC och Castle sensor 1515-2200KV Combo är en Combo med borstlöst fartreglage och borstlös motor från välkända Castle Creation. Avsedd för bilar.

Original Artikelnummer: Castle Creation 010-0139-01

Specifikationer

Produkt: Borstlös Combo med fartreglage och motor

kV Värde: 2200kV

Avsedd för: Bil

Passar nedan biltyp(er)

Buggy

Monster Truck

On Road

Short Course

Mer information från Castle Creation

Sidewinder 8th is a sport 1:8 scale waterproof combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

Features:

• 2-6S LiPo (25.2V) use in vehicles up to 5Kg (11.lbs) with battery, ready-to-run.
• Smooth sensorless motor operation with included 1515-2200kv sensored brushless motor
• Large 6.5mm female motor bullet connectors (male connectors sold separately)
• Waterproof design ESC and splash resistant 30MM fan
• Powerful 5.5 volts fixed, 8 amps Peak BEC
• LED error codes for common error conditions
• Convenient transmitter programming for nine common adjustable settings
• Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), Field Link Card  (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)

Sidewinder 8 Combo includes:

• Sidewinder 8th ESC
• Castle 2200Kv brushless sensored motor
• Drivers Ed and Quick Start Guide
• Castle decal sheet

Sidewinder 8th ESC Specs:

• Input voltage: MIN: 2S LiPo; MAX: 6S LiPo
• BEC specifications: 5.5V fixed; 8A peak
• Operating environment: Waterproof design allows for use in nearly any environment.
• Brake: Proportional
• Reversible: Yes - with lockout
• Size: L62.2 x W56 x H34 mm
• Weight (without battery connector soldered to ESC): 100 g
• Motor connectors: 6.5 mm CC Bullets

Motor 2200kV Specs:

• KV: 2200
• Max RPM: 60,000
• Max Input Volts: 25.2
• Weight: 429 g
• Motor Length: 75.3 mm
• Motor Diameter: 40 mm
• Shaft diameter: 5.0 mm
• Connector: Gold 6.5mm male bullets

Legal mumbo jumbo that we need you to read:
Although Sidewinder 8th and Castle brushless motors are waterproof, they can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
