Borstlös Motor MAMBA MAX PRO 1:10 25V Car ESC w/1406-6900 Combo*

Borstlös Motor MAMBA MAX PRO 1:10 25V Car ESC w/1406-6900 Combo - Castle Creation 010-0066-08

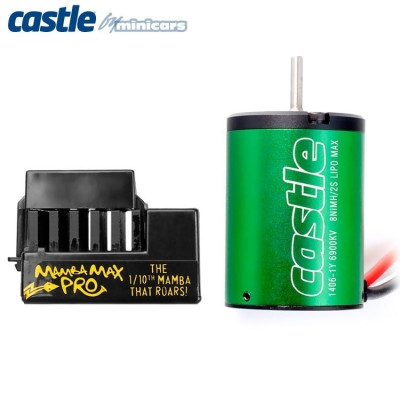

MAMBA MAX PRO 1:10 25V Car ESC w/1406-6900 Combo är en Combo med borstlöst fartreglage och borstlös motor från välkända Castle Creation. Avsedd för bilar.

Original Artikelnummer: Castle Creation 010-0066-08

Specifikationer

Produkt: Borstlös Combo med fartreglage och motor

kV Värde: 6900kV

Avsedd för: Bil

Passar nedan biltyp(er)

Monster Truck

On Road

Mer information från Castle Creation

Mamba Max Pro 1/10th Sensored & Sensorless ESC: Castle is Ready to ROAR

Castle, the leader in brushless technology for RC cars, is pleased to announce the release of our new Mamba Max Pro brushless ESC featuring SMARTSENSE™ operation. SMARTSENSE brings the best of sensored and sensorless ESC together to create the ideal controller for serious 1/10th scale enthusiasts. Operating at up to 6S, Mamba Max Pro can handle nearly twice the power of the market standard Mamba Max!

Castle Builds A Sensored Controller?
Hey, we’re never going to just go with the flow, so we’ve built the best of both worlds into the new controller.

• SmartSense uses the motor sensors to start the motor and then it switches over to Castle’s ultra powerful and efficient dynamic sensorless mode which boosts motor efficiency. Simply put, you’ll get more power and less heat from your motor.
• Sensored Only mode runs sensored motors using sensored timing only.
• CHEAT MODE, Castle’s High Energy Advanced Timing allows users to electronically advance their sensored motor’s timing to extreme settings. This can often yield just that extra bit of power needed to win the race. Be careful – there’s never a free lunch, extra power comes with extra motor heat!

OK, now I’m confused. Is Sensored better than Sensorless?
The answer is that for most users, Sensorless operation is still better.

• Castle’s Sensorless controllers offer best in class start up and braking which are fine for most users. Sensored only motor operation cannot deliver maximum efficiency.
• Sensors are terribly inaccurate for motor timing purposes as the motor’s magnetic fields change under load or at speed; that’s where Sensorless operation shines.
• Sensorless is also just more dependable. There are fewer wires and connections that need to survive the incredibly rough treatment most RC cars and trucks endure.

Some guys do need sensored operation, mainly because the racing world’s rules require it, but also because it can offer slightly better start up and braking performance. Mamba Max Pro offers the ultimate in flexibility: use it with all your 1/10th motors, sensored or sensorless!

I’m over the shock of the sensor port. Tell me what else you’ve packed into the Mamba Max Pro.

• 6S (25.2 volts) max input voltage.
• Switching BEC powers your radio and servo all the way up to the 6S max input. Users may select the output for any voltage between 5V and 7V.
• Durable case and cooling fan to protect and cool the controller during hard off-road action.
• Ready to Run: Mamba Max Pro is ready to run out of the box.
• Castle Link Compatible: Like all Castle controllers, the Mamba Max Pro may also be “tuned” for the drivers’ preferences in the throttle curve, brake strength, reversing modes and more. Access these features with the Castle Link USB connector and a PC for even more versatility. If you do not already have a Castle Link, you may use the coupon included in this package for a free Castle Link.

Castle 1:10 FAQ's

Mamba Max Pro Specs:

• Cells: 6s LiPo
• Brake: Proportional with adjustable curve
• Reversible: Yes - with lockout
• Low Voltage Cutoff: Programmable
• Size:     L46.85 x W37.2 x H32 mm
• Weight w/wires: 81 g
• Connector: 4mm bullet

Neu-Castle 1406-6900KV Motor

So how do you improve upon the already awesome CM36 series? Work with motor guru Steve Neu to change the motor from a slotless design to one with a 1.4 inch diameter slotted stator. Then change the single neodymium rotor magnet from a 2 pole donut to a 4 magnet, four pole rotor for more torque. Throw in better manufacturing, high quality bearings and a removable end bell and you have the new 1406 series of high performance motors from Castle. The end result is an all new motor that cranks out 30% more torque with all the efficiency and endurance that Castle is known for. These motors are bolt in upgrades for most all 1/10 applications and come in the now-standard ratings of 4,600kv, 5,700kv, 6,900kv and 7,700 kv for easy transition for dealers and customers alike.

1406-6900KV Motor Specs:

• 6900KV
• Size: L49 x D36 mm
• Shaft: 1/8"
• Weight: 169.5 g
