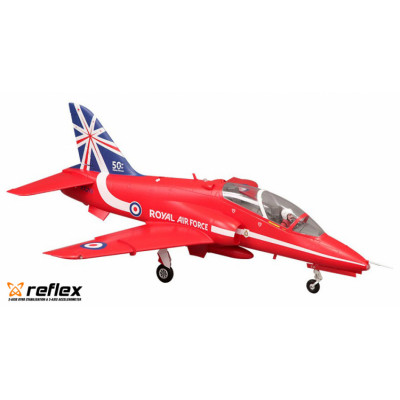

BAE Hawk 1042mm 80mm Fläkt Reflex-Gyro Elmotor ARTF*

BAE Hawk 1042mm 80mm Fläkt Reflex-Gyro med Elmotor

BAE Hawk 1042mm 80mm Fläkt Reflex-Gyro är ett radiostyrt flygplan från välkända FMS och är lämplig för Erfarna piloter. Denna flygfarkost är ett Flygplan som drivs av en motor fläkt (Jet motor fläkt) som drivs av en Elmotor.

Detta RC flyg är konstruerat av Foam och levereras som ARTF (Almost Ready To Fly) och måste kompletteras med batteri, sändare och laddare. Infällbara landningsställ ingår i leveransen!

Original Artikelnummer: FMS099P-REF

Specifikationer

• Typ av flygplan: Motor Fläkt (Ducted Fan)
• Svårighetsgrad: Erfaren
• Driftsätt: Elmotor
• Levereras som: Almost Ready To Fly (ARTF)
• Infällbara landningsställ: Ja Ingår i leverans
• Material: Foam

-------------------

Mer information från FMS

FMS BAE Hawk 1042mm with 80 mm EDF PNP & Reflex Gyro Stabilistation

FMS has created in this model a fully detailed aircraft complete with CNC machined shock absorbing metal landing gear and gear covers, detalied panel lines, a realistic pilot figure, removeable fuel tank, extremely bright LED’s, retracts and working flaps.

Features:

• Now with 3-Axis Reflex Stabilization System!
• A Powerful 3270-KV1930 motor
• 80mm 12 Blade Fan
• High-quality Predator 100A ESC
• Integrated wing set
• Extreme scale detail throughout: Gear covers, accurate aircraft panel lines, detailed pilot figure, removable fuel tank, High Lumens LED lamps.
• Screw-together construction (6 screw assembly and disassembly for ease of transportation)
• 13g analog metal gear servos throughout for better control
• CNC-Machined shock-absorbed metal landing gears
• Full Function Flaps and retracts
• Button-type canopy hatch

In the new Reflex system there are three flight modes: Stabilized, Optimized & Off, which are designed for pilots with different skill levels. The Reflex functions help pilots more easily to operate and insist flying performance.

Reflex System Overview:

• Utilizes a high-speed 32-bit ARM processor onboard.
• Sensors: Solid-state 3 axis gyro and 3 axis accelerometer.
• Automatically recognizes SBUS/PPM/PWM systems, compatible with all radio systems with 4 channels or above.
• Easy operation: the Reflex system is programmed specifically for the aircraft it is connected to. No further programming is needed. The user only needs to connect their receiver to the gyro and setup the aircraft normally.

3 Reflex Flight Mode Functions:

• Stabilized, Optimized or off.
• This is controlled with a 2 or 3 position switch on the transmitter. When assigned to a 2 position switch, the Reflex system switches between stabilized and optimized modes.
• If the transmitter does not have adequate auxiliary channels, the included jumper should be used to change the control mode of the Reflex system.

Reflex Stabilized mode:
Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released giving pilots absolute peace of mind.

Reflex OFF:
Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Reflex Optimized Mode:
Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets- from gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Specs:

• Wingspan: 1042 mm
• Overall Length: 1226 mm
• Flying Weight Around: 2500 g
• Motor: Borstlös elmotor 3270-KV1930 in-runner
• ESC :100A with 8A BEC
• Servos: 8x 13g Analog Metal Gear Servo
• Recommended Radio: 6 Channels
• CG (center of gravity): 90-100 mm
• Recommended Battery: 6S 4000mAh 35C (XT90 connector)
• Aileron: Yes
• Elevator: Yes
• Rudder: Yes
• Flaps: Yes
• Retracts: Yes
• Approx. Flying Duration: 4 Minutes
• Minimum Age Recommendation: 14+
• Experience Level: Intermediate
• Recommended Environment: Outdoor
• Assembly Time: 30 minutes
• Is Assembly Required: Yes
• Material: Durable EPO
• Requires: Radio System, Battery and Charger
